• Materiales:Nylon + hule EPDM
• Impermeable:IP68
• Temperatura: -40° a 105°, a corto plazo 120°
• Prevención de incendios: UL94V-2, V0 personalizable
• Rendimiento: ROHS20, CE UE, IP68

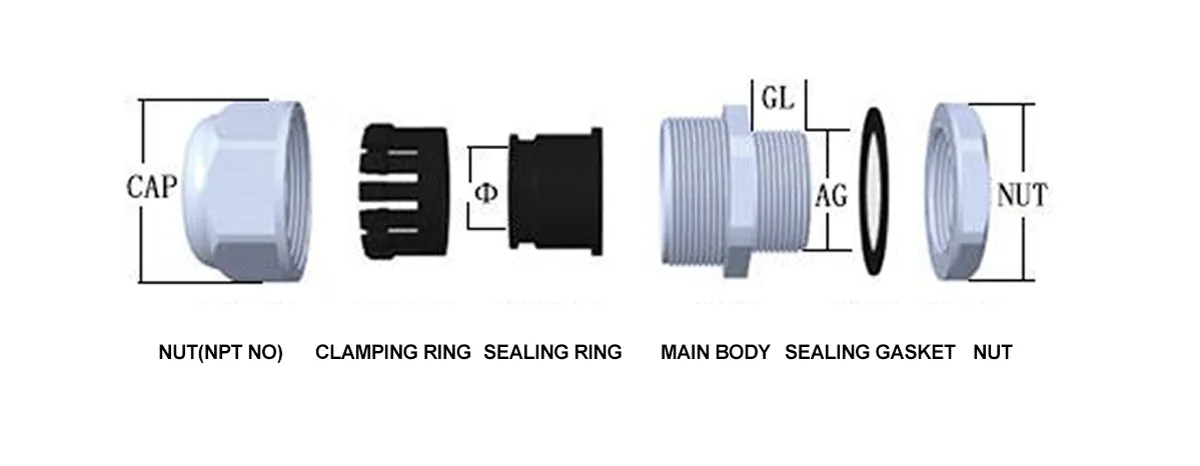

| Modelo del producto | Tamaño de rosca | Rango de cable | Longitud de rosca | Tamaño de llave inglesa |
| Núm. de parte. | Métrico | φ mm | GL mm | Tuerca/cabeza mm |
| MG20A-H5-04 | M20×1.5 | 2~4 | 15 | 27/27 |
| MG20A-H5-03 | M20×1.5 | 1.5~3 | 15 | 27/27 |
| MG22A-H5-04 | M22×1.5 | 2~4 | 10 | 29/27 |
| MG22A-H5-03 | M22×1.5 | 1.5~3 | 10 | 29/27 |
| MG25A-H5-06 | M25×1.5 | 4~6 | 15 | 33/33 |
| MG32A-H5-08 | M32×1.5 | 5~8 | 15 | 41/41 |
| MG40A-H5-08 | M40×1.5 | 5~8 | 20 | 50/50 |
| PG16A-H5-04 | PG16 | 2~4 | 11 | 30/27 |
| PG16A-H5-03 | PG16 | 1.5~3 | 11 | 30/27 |
| PG21A-H5-06 | PG21 | 4~6 | 12 | 36/33 |
| PG29A-H5-08 | PG29 | 5~8 | 12 | 46/41 |
| PG36A-H5-08 | PG36 | 5~8 | 15 | 57/50 |
| G2/1A-H5-04 | G1/2 | 2~4 | 15 | 30/27 |
| G1/2A-H5-03 | G1/2 | 1.5~3 | 15 | 30/27 |
| G3/4A-H5-06 | G3/4 | 4~6 | 15 | 33/33 |
| *G1A-H5-08 | G1 | 5~8 | 15 | 42/41 |
| G1-1/4A-H5-08 | G1-1/4 | 5~8 | 16 | 51/50 |
OBTENER UNA COTIZACIÓN
